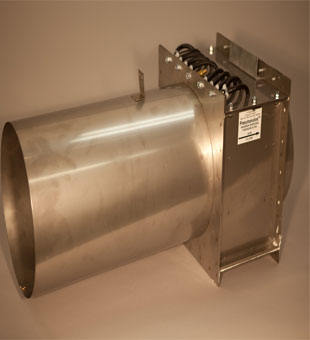

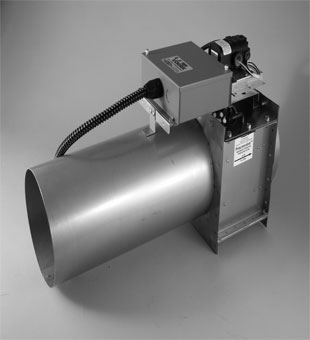

The PVT-2000 is a precision airflow control valve consisting of a Vortek VT-2000 airflow measuring device mounted in the inlet of a PRD airflow control valve. A factory-installed current-to-pressure (I/P at 4-20 ma) or voltage-to-pressure (E/P at 2-10 vdc) transducer takes an electronic control signal from any airflow controller to modulate the PRD.
The Vortek transmitter provides a 4-20 ma, 1-5 vdc or 2-10 vdc output to the airflow controller. The use of these industry standard signals allow use with most airflow and temperature controllers presently on the market. A 24 vac or dc power source is required for the Vortek transmitter. Both the I/P and E/P are loop-powered, two-wire connection. Both the I/P and E/P require 20 psi clean, dry instrument air supply to operate.
Applications
Room supply air and lab exhaust controls
Cleanroom pressurization control
Hospitals
Industrial and process facilities
Advantages
Available with rectangular or circular inlet and outlet,
Can be ordered in galvanized steel or stainless steel construction
Well-suited to contaminated and corrosive airstreams
