VT-5000

VT-5000 – VORTEK FLOW TECHNOLOGY MEASUREMENT

Velocity measurement is accomplished by Tek-Air’s unique, patented, VorTek sensors. VorTek sensors utilize proven vortex shedding phenomena to measure the true airflow velocity independent of changes in temperature, density, and humidity which affect Pitot and thermal airflow measurement systems.

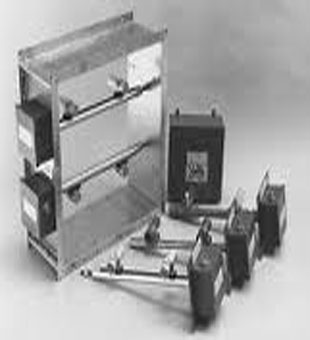

The VT-5000 Airflow Measurement Probe consists of multi-sensor probes inserted in the ductwork where airflow is to be measured and transmitted.

Individual sensors on the probes provide pulse frequency electronic output signals which are directly proportional and linear to the airflow velocity.

These signals are totalized in the companion transmitter and converted to an industry standard, 4-20mA output. (1-5 VDC or 2-10 VDC are also selectable by jumper).
